euroappa
2026-05-11
! This is a work in progress !
Got questions? See https://globalbioticinteractions.org/euroappa for more information, or reach out to Jorrit or Cala.
EuroAPPA prototype P2.
TLDR; This prototypes offers integrated plant-pollinator data products like euroappa-nuts-2021-gbif.csv, euroappa-nuts-2021-col.parquet, pollinator checklist of NUTS IE042 (West Ireland), euroappa-nuts-2021.gpkg (view summary on map) and euroappa-cntr-2024-col.csv containing geospatially aligned plant-pollinator records as interpreted from selected versioned taxonomic resources (e.g., GBIF, Catalogue of Life) sourced from a versioned collection of existing species interaction datasets. For a more detailed description, see below.
# R code - getting started
# load duckdb libraries for efficient data access
library(duckdb)
library(duckplyr)
# connect
con <- dbConnect(duckdb())
# create view for convenient viewing
dbExecute(con,
"CREATE VIEW euroappa AS
SELECT * FROM PARQUET_SCAN('https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-nuts-2021-col.parquet');")
# show first few records
tbl(con, "euroappa") |>
head() |>
collect()
# bash code for getting started
curl -L1 https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-nuts-2021-col.tsv \
| head

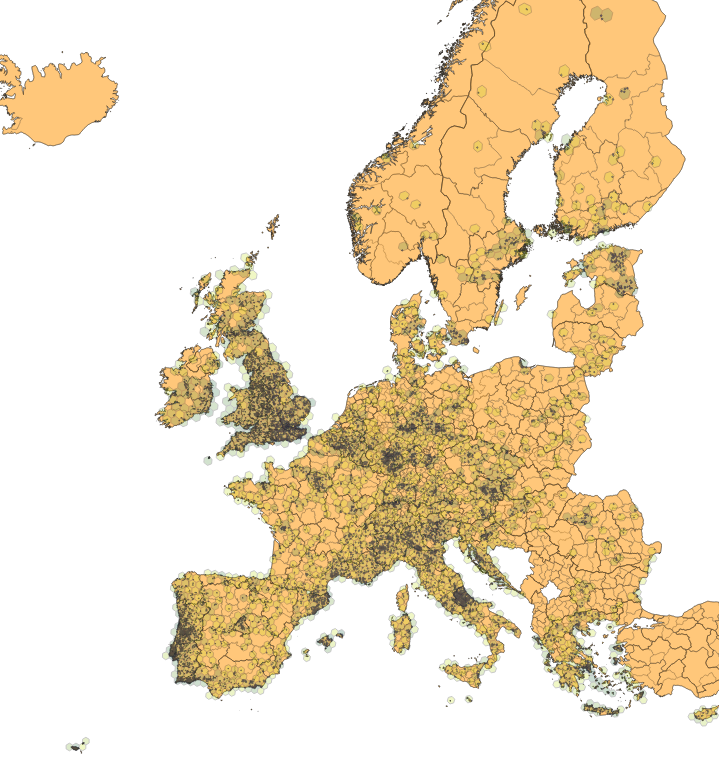

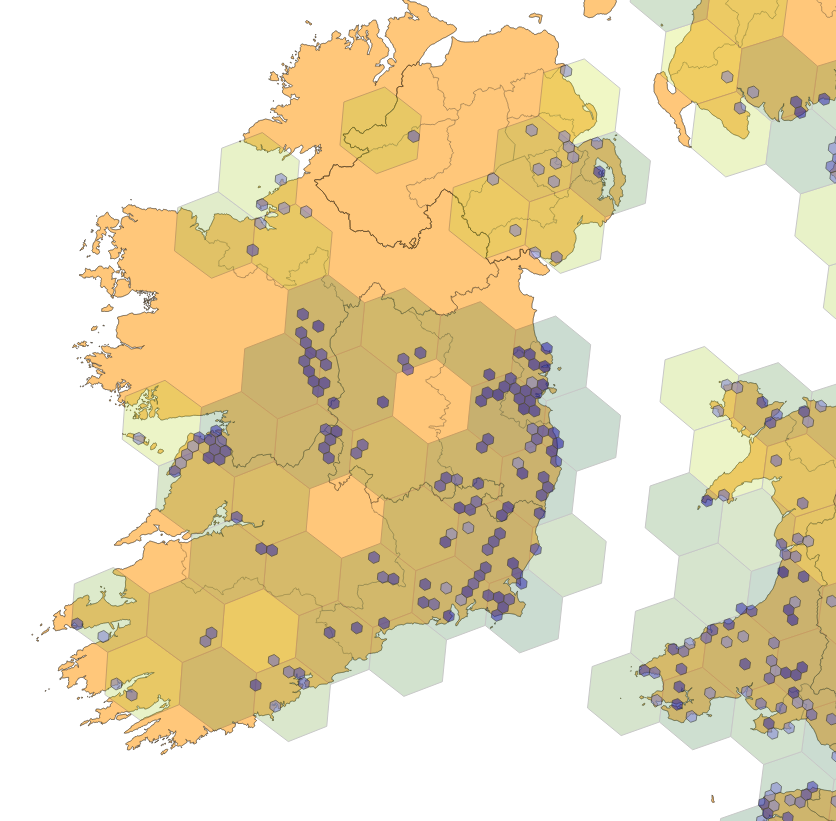

Screenshots of EuroAPPA record density as generated using QGIS 3.34 and EuroAPPA p2 data products and NUTS 2021.
See https://github.com/euroappa/euroappa.github.io for associated files. Also, for other examples using these methods (e.g. duckdb, QGIS) see https://www.globalbioticinteractions.org/2026/01/22/euroappa/ .
Changes
Where Prototype 1 (P1) used verbatim taxonomic names and provided decimal coordinates, P2 applies specific taxonomic perspectives (i.e., GBIF taxonomic backbone [1], Catalogue of Life [2] as versioned in Nomer’s Corpus of Taxonomic Resources [3]) and specific geospatial units (i.e., administrative country boundaries [4], statistical zones[5]).
Requirements
As part of our https://en.wikipedia.org/wiki/Requirements_management process.
Note that there’s a difference between functional (e.g., generate a list of pollinators) and non-functional (e.g., solution should outlive the lifetime of the project, web accessible, data is versioned) requirements.
Functional Requirements
P2.FR1. generate a list of plant - pollinator interaction records for a specific geospatial/taxonomic range
P2.FR2. generate list of pollinators for a specific geospatial/taxonomic range
P2.FR3 allows for a way to provide feedback (not yet implemented)
Features
A feature is “a prominent or distinctive user-visible aspect, quality, or characteristic of a software system or systems”, as defined by Kang et al. 1990. A feature implements one or more requirements.
P2.F1. offers a bash script to implement an automated workflow to generate euroappa data products. These data products are deposited in Zenodo and were derived a versioned copy of the GloBI Data Review Corpus [3] and selected taxonomic and geospatial databases ([1,2,4,5])
highlevel workflow:
synthesized interaction data
+ taxonomic alignment
+ geospatial alignment
= EuroAPPA P2 data products
P2.F2. offers data workflows and data products for generating of insect pollinators by country using SQL and DuckDB
Example query:
SELECT DISTINCT
sourceTaxonFamilyName,
sourceTaxonName
FROM
'https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-nuts-2021-col.parquet'
WHERE
sourceTaxonPathNames ~ '.*[^A-Z]Insecta[ ].*'
AND sourceTaxonFamilyName NOT NULL
-- Ireland Statistical Regions https://en.wikipedia.org/wiki/NUTS_statistical_regions_of_Ireland
-- NUTS Level 3 West: IE042
AND NUTS_ID = 'IE042'
GROUP BY sourceTaxonFamilyName, sourceTaxonName
ORDER BY sourceTaxonFamilyName, sourceTaxonName;
first 5 records:
| sourceTaxonFamilyName | sourceTaxonName |
|---|---|
| Andrenidae | Andrena |
| Andrenidae | Andrena angustior |
| Andrenidae | Andrena cineraria |
| Andrenidae | Andrena clarkella |
| Andrenidae | Andrena minutula |
P2.F3. offers data products containing country specific pollinator-plant association record datasets:
- insect-pollinators-of-ireland.sql
-[:generated]->insect-pollinators-of-ireland.csv
Example query:
SELECT DISTINCT
sourceTaxonFamilyName as pollinatorFamily,
sourceTaxonName as pollinatorName,
targetTaxonFamilyName as plantFamily,
targetTaxonName as plantName,
FROM
'https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-nuts-2021-col.parquet'
WHERE
sourceTaxonPathNames ~ '.*[^A-Z]Insecta[ ].*'
AND sourceTaxonFamilyName NOT NULL
AND targetTaxonFamilyName NOT NULL
-- Ireland Statistical Regions https://en.wikipedia.org/wiki/NUTS_statistical_regions_of_Ireland
-- NUTS Level 3 West: IE042
AND NUTS_ID = 'IE042'
GROUP BY sourceTaxonFamilyName, sourceTaxonName, targetTaxonFamilyName, targetTaxonName
ORDER BY sourceTaxonFamilyName, targetTaxonFamilyName, sourceTaxonName, targetTaxonName;
first 5 records:
| pollinatorFamily | pollinatorName | plantFamily | plantName |
|---|---|---|---|
| Andrenidae | Andrena | Apiaceae | Pimpinella saxifraga |
| Andrenidae | Andrena clarkella | Apiaceae | Pimpinella saxifraga |
| Andrenidae | Andrena semilaevis | Apiaceae | Pimpinella saxifraga |
| Andrenidae | Andrena angustior | Asteraceae | Leontodon crispus |
| Andrenidae | Andrena minutula | Asteraceae | Bellis perennis |

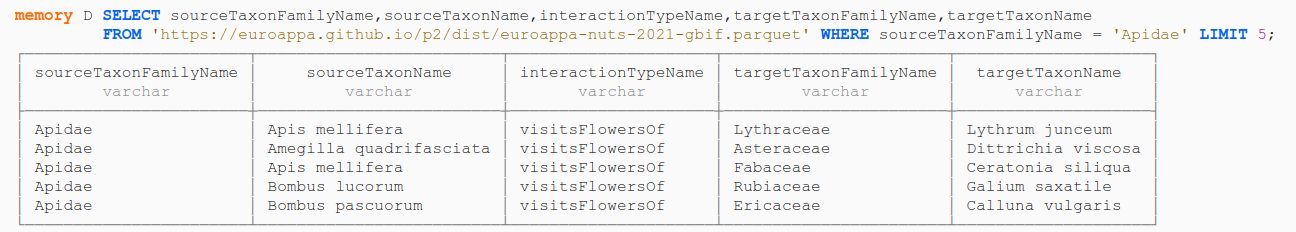

P2.F4. allows for online queries through services like https://shell.duckdb.org/ and SQL, a top 10 most used programming language. Example queries include listing the first five interactions associated with bee family Apidae as aligned with GBIF Taxonomy and NUTS 2021.
using query:
SELECT sourceTaxonFamilyName,sourceTaxonName,interactionTypeName,targetTaxonFamilyName,targetTaxonName
FROM 'https://euroappa.github.io/p2/dist/euroappa-nuts-2021-gbif.parquet'
WHERE sourceTaxonFamilyName = 'Apidae'
LIMIT 5;
P2.F5. allows for spatial queries through QGIS and euroappa-nuts-2021.gpkg, euroappa-nuts-2021-h3-level-4.gpkg, euroappa-nuts-2021-h3-level-6.gpkg and euroappa-nuts-2021.gpkg related (bigish dataset ~500MiB) data products.
P2.F6. data products (parquet files) are compatible with commercial data exploration platforms such as ArcGIS, MotherDuck, and have support for integration into R and Python.
P2.F7. data products (csv files) are compatible with Excel and Google Sheet etc.
Data Products
| interaction data corpus | geospatial scheme | taxonomic scheme | products |
|---|---|---|---|
| GloBI 2026 [6] | NUTS 2021 euroappa-nuts-2021.gpkg | GBIF Taxonomic Backbone [1] | euroappa-nuts-2021-gbif.csv / .tsv / .parquet |
| GloBI 2026 [6] | CNTR 2024 euroappa-cntr-2024.gpkg | GBIF Taxonomic Backbone [1] | euroappa-cntr-2024-gbif.csv / .tsv / .parquet |
| GloBI 2026 [6] | NUTS 2021 euroappa-nuts-2021.gpkg | Catalogue of Life [2] | euroappa-nuts-2021-col.csv / .tsv / .parquet |
| GloBI 2026 [6] | CNTR 2024 euroappa-cntr-2024.gpkg | Catalogue of Life [2] | euroappa-cntr-2024-col.csv / .tsv / .parquet |
Data Schemas
NUTS Associated Schemas
As generated from
duckdb \
-markdown \
-c "describe 'https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-nuts-2021-col.parquet';"
| column_name | column_type | null | key | default | extra |
|---|---|---|---|---|---|
| decimalLatitude | DOUBLE | YES | NULL | NULL | NULL |
| decimalLongitude | DOUBLE | YES | NULL | NULL | NULL |
| sourceTaxonId | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonName | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonAuthorship | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonFamilyId | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonFamilyName | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonPathIds | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonPathNames | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonNameRelation | VARCHAR | YES | NULL | NULL | NULL |
| interactionTypeName | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonId | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonName | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonAuthorship | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonFamilyId | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonFamilyName | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonPathIds | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonPathNames | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonNameRelation | VARCHAR | YES | NULL | NULL | NULL |
| eventDate | TIMESTAMP | YES | NULL | NULL | NULL |
| referenceCitation | VARCHAR | YES | NULL | NULL | NULL |
| citation | VARCHAR | YES | NULL | NULL | NULL |
| namespace | VARCHAR | YES | NULL | NULL | NULL |
| lastSeenAt | TIMESTAMP | YES | NULL | NULL | NULL |
| CNTR_CODE | VARCHAR | YES | NULL | NULL | NULL |
| NUTS_ID | VARCHAR | YES | NULL | NULL | NULL |
| NUTS_NAME | VARCHAR | YES | NULL | NULL | NULL |
| LEVL_CODE | BIGINT | YES | NULL | NULL | NULL |
with an example record from NUTS ID PT200 (Região Autónoma dos Açores) shown below as generated via
duckdb \
-csv \
-c "select * from 'https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-nuts-2021-col.parquet' WHERE NUTS_ID = 'PT200' limit 1;" \
| mlr --icsv --oxtab cat
yielding
decimalLatitude 38.6747398333
decimalLongitude -27.2511157778
sourceTaxonId COL:4YRBX
sourceTaxonName Sphaerophoria scripta
sourceTaxonAuthorship (Linnaeus, 1758)
sourceTaxonFamilyId COL:GVS
sourceTaxonFamilyName Syrphidae
sourceTaxonPathIds COL:CS5HF COL:N COL:RT COL:L2655 COL:H6 COL:D2P COL:GVS COL:87CNM COL:87CZ8 COL:BY4GV COL:BY4GW COL:4YRBX
sourceTaxonPathNames Eukaryota Animalia Arthropoda Hexapoda Insecta Diptera Syrphidae Syrphinae Syrphini Sphaerophoria Sphaerophoria (Sphaerophoria) Sphaerophoria scripta
sourceTaxonNameRelation HAS_ACCEPTED_NAME
interactionTypeName visitsFlowersOf
targetTaxonId COL:622TP
targetTaxonName Asteraceae
targetTaxonAuthorship Dumort.
targetTaxonFamilyId COL:622TP
targetTaxonFamilyName Asteraceae
targetTaxonPathIds COL:CS5HF COL:P COL:CMQ8S COL:TP COL:MG COL:ST COL:622TP
targetTaxonPathNames Eukaryota Plantae Pteridobiotina Tracheophyta Magnoliopsida Asterales Asteraceae
targetTaxonNameRelation HAS_ACCEPTED_NAME
eventDate 2025-06-11 15:20:24
referenceCitation https://www.inaturalist.org/observations/289117707
citation http://iNaturalist.org is a place where you can record what you see in nature, meet other nature lovers, and learn about the natural world.
namespace globalbioticinteractions/inaturalist
lastSeenAt 2026-05-06 15:48:15.203
CNTR_CODE PT
NUTS_ID PT200
NUTS_NAME Região Autónoma dos Açores
LEVL_CODE 3
CNTR Associated Schemas
As generated from
duckdb \
-markdown \
-c "describe 'https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-cntr-2024-col.parquet';"
| column_name | column_type | null | key | default | extra |
|---|---|---|---|---|---|
| decimalLatitude | DOUBLE | YES | NULL | NULL | NULL |
| decimalLongitude | DOUBLE | YES | NULL | NULL | NULL |
| sourceTaxonId | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonName | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonAuthorship | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonFamilyId | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonFamilyName | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonPathIds | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonPathNames | VARCHAR | YES | NULL | NULL | NULL |
| sourceTaxonNameRelation | VARCHAR | YES | NULL | NULL | NULL |
| interactionTypeName | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonId | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonName | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonAuthorship | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonFamilyId | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonFamilyName | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonPathIds | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonPathNames | VARCHAR | YES | NULL | NULL | NULL |
| targetTaxonNameRelation | VARCHAR | YES | NULL | NULL | NULL |
| eventDate | TIMESTAMP | YES | NULL | NULL | NULL |
| referenceCitation | VARCHAR | YES | NULL | NULL | NULL |
| citation | VARCHAR | YES | NULL | NULL | NULL |
| namespace | VARCHAR | YES | NULL | NULL | NULL |
| lastSeenAt | TIMESTAMP | YES | NULL | NULL | NULL |
| ISO3_CODE | VARCHAR | YES | NULL | NULL | NULL |
| CNTR_ID | VARCHAR | YES | NULL | NULL | NULL |
| NAME_ENGL | VARCHAR | YES | NULL | NULL | NULL |
With example record from country code IRL (Ireland) generated via:
duckdb \
-csv \
-c "SELECT * from 'https://github.com/euroappa/euroappa.github.io/releases/download/euroappa.p2/euroappa-cntr-2024-col.parquet' WHERE ISO3_CODE = 'IRL' limit 1;" \
| mlr --icsv --oxtab cat
yielding
decimalLatitude 53.13666534423828
decimalLongitude -9.114999771118164
sourceTaxonId COL:MFLX
sourceTaxonName Bombus jonellus
sourceTaxonAuthority (Kirby, 1802)
sourceTaxonFamilyId COL:6KD
sourceTaxonFamilyName Apidae
sourceTaxonPathIds COL:CS5HF COL:N COL:RT COL:L2655 COL:H6 COL:HYM COL:KZPW7 COL:KZMNP COL:625GP COL:6KD COL:J5V COL:KN5 COL:62H8K COL:MFLX
sourceTaxonPathNames Eukaryota Animalia Arthropoda Hexapoda Insecta Hymenoptera Apocrita Aculeata Apoidea Apidae Apinae Bombini Bombus Bombus jonellus
sourceTaxonNameRelation HAS_ACCEPTED_NAME
interactionTypeName pollinates
targetTaxonId COL:768LJ
targetTaxonName Pedicularis sylvatica
targetTaxonAuthority L.
targetTaxonFamilyId COL:DQG
targetTaxonFamilyName Orobanchaceae
targetTaxonPathIds COL:CS5HF COL:P COL:CMQ8S COL:TP COL:MG COL:3F4 COL:DQG COL:KVNJK COL:6JYZ COL:768LJ
targetTaxonPathNames Eukaryota Plantae Pteridobiotina Tracheophyta Magnoliopsida Lamiales Orobanchaceae Pedicularideae Pedicularis Pedicularis sylvatica
targetTaxonNameRelation HAS_ACCEPTED_NAME
eventDate 2017-06-02 00:00:00
referenceCitation doi:10.1111/1365-2664.13990
citation Lanuza et al. (2025), EuPPollNet: A European Database of Plant-Pollinator Networks. Global Ecol Biogeogr, 34: e70000. https://doi.org/10.1111/geb.70000
namespace JoseBSL/EuPPollNet
lastSeenAt 2026-05-06 22:50:55.128
ISO3_CODE IRL
CNTR_ID IE
NAME_ENGL Ireland
References
[1] GBIF Secretariat (2023). GBIF Backbone Taxonomy. Checklist dataset https://doi.org/10.15468/39omei
[2] Bánki, O., Roskov, Y., Döring, M., Ower, G., Vandepitte, L., Hobern, D., Remsen, D., Schalk, P., DeWalt, R. E., Keping, M., Miller, J., Orrell, T., Aalbu, R., Adlard, R., Adriaenssens, E., Aedo, C., Aescht, E., Akkari, N., Alonso-Zarazaga, M. A., et al. (2022). Catalogue of Life Checklist (Version 2022-01-14). Catalogue of Life. https://doi.org/10.48580/d4tp
[3] Poelen, J. H. (ed . ) . (2026). Nomer Corpus of Taxonomic Resources hash://sha256/14b77b8b7561fea78691723c093b62ce3dffb3672a790cd9da0ab3e045145387 hash://md5/8ed9e0756e3d8ac23c014dbdb9006e4e (0.33) [Data set]. Zenodo. https://doi.org/10.5281/zenodo.19924910
[4] Administrative Units: Countries (2024) https://ec.europa.eu/eurostat/web/gisco/geodata/administrative-units/countries https://gisco-services.ec.europa.eu/distribution/v2/nuts/gpkg/CNTR_RG_01M_2024_4326.gpkg hash://md5/f1472535e38a026bd4df4228caf01f82 accessed May 2026.
[5] Territorial units for statistics (NUTS) (2021) https://ec.europa.eu/eurostat/web/gisco/geodata/statistical-units/territorial-units-statistics ‘https://gisco-services.ec.europa.eu/distribution/v2/nuts/gpkg/NUTS_RG_01M_2021_4326.gpkg’ hash://md5/9e1146e52a2cb5e4a34153facaf50b0b
[6] Poelen, J. H., & Global Biotic Interactions Community. (2026). Global Biotic Interactions (GloBI) Review Dataset Corpus hash://md5/9f9f111af19f657e31ce04b9d422eed4 hash://sha256/8467e21bf1194cbbcb201b3ee2bbee0e2d657a772b4e3ce62fc63afe9116c626 [Data set]. Zenodo. https://doi.org/10.5281/zenodo.20072186
